Auto Robot Screwdriver System Air-Blowing Type Locking Tightening Machine

Shanghai YoungYou Intelligence Co.,Ltd.
Contact Now

Auto Robot Screwdriver System Air-Blowing Type Locking Tightening Machine

Brand Name : ABB

Model Number : XW-LS5331

Certification : CE

Place of Origin : CHINA

MOQ : 2

Price : 800

Payment Terms : L/C, T/T

Supply Ability : 100sets/month

Delivery Time : 6-8 WEEKS

Packaging Details : Foam fixation+bubble film protection+wooden box

Warranty : 1 Year

Max. Torque : 12KGF*CM

Weight : 70KG

Air pressure : 0.5-0.7MPa

Rated Voltage : 220V

Dimensions : 530*630*800MM

Position accuracy : ±0.02mm/axis

Percent of pass : ≥99.5%

Contact Now

Air-blowing type automatic screw driver locking tightening machine with screwdriver.Weight:70KG

Product Description
Automatic lock screw machine is an automated equipment that can replace manual screw locking.
As the production cost of enterprises is getting higher and higher, labor costs are rising, and automatic screw machines will replace most of the screw locking stations, which are simple to operate, convenient to use, and efficient.

In the traditional manufacturing industry, screw tightening mainly relies on manual work. Manual screw tightening mainly includes pure manual tightening and electric or pneumatic screwdriver tightening. The latter generates rotational power through electric or pneumatic means to replace frequent manual tightening actions, which to some extent reduces the working intensity of locking screws, However, due to the manual placement of screws and the alignment of screw heads still requiring a lot of work time and effort, the overall efficiency improvement is relatively limited. With the development of intelligence, a new way of locking screws has emerged, which is to use automatic screw locking machines.
Automatic locking screw machines, also known as automatic locking screw machines, industrial tightening systems, screw locking robots, etc., are machines used to replace traditional manual tightening screws.

Auto Robot Screwdriver System Air-Blowing Type Locking Tightening Machine

About the company

Our guide rail has cooperated with many international well-known robot brands, such as ABB KUKA FANUC Yaskawa UR. The companies involved mainly include palletizing, loading and unloading. The load of the guide rail ranges from 500kg to 5000kg. The length of the guide rail is customized according to the needs of customers. We have made a case that an ABB IRB6700 robot corresponds to 20 CNC machines, and a 50m long guide rail completes the reciprocating motion, loading and unloading of the robot. The number of robots is greatly reduced and the integration cost is saved.


Our company also offers industrial robots at very favorable prices to place orders together at lower prices.
Welcome to Shanghai, China, to investigate our robots and rails!


Company Product Supply
ABB robot
KUKA robot
Yaskawa robot
Fanuc robot
UR robot
Cobot
Guide rail
Cobot made in China



Product specifications

Model
XW-SL5331
XW-SL331
XW-SL CUSTOMIZED
Power supply
AC 220V 50/60HZ
Screwdriver torque
1.0-12kgf*cm
To order
Moving speed
600mm/s
Air pressure
0.5-0.7MPa
Position accuracy
±0.02mm/axis
Program capacity
999 groups/1000 points per group

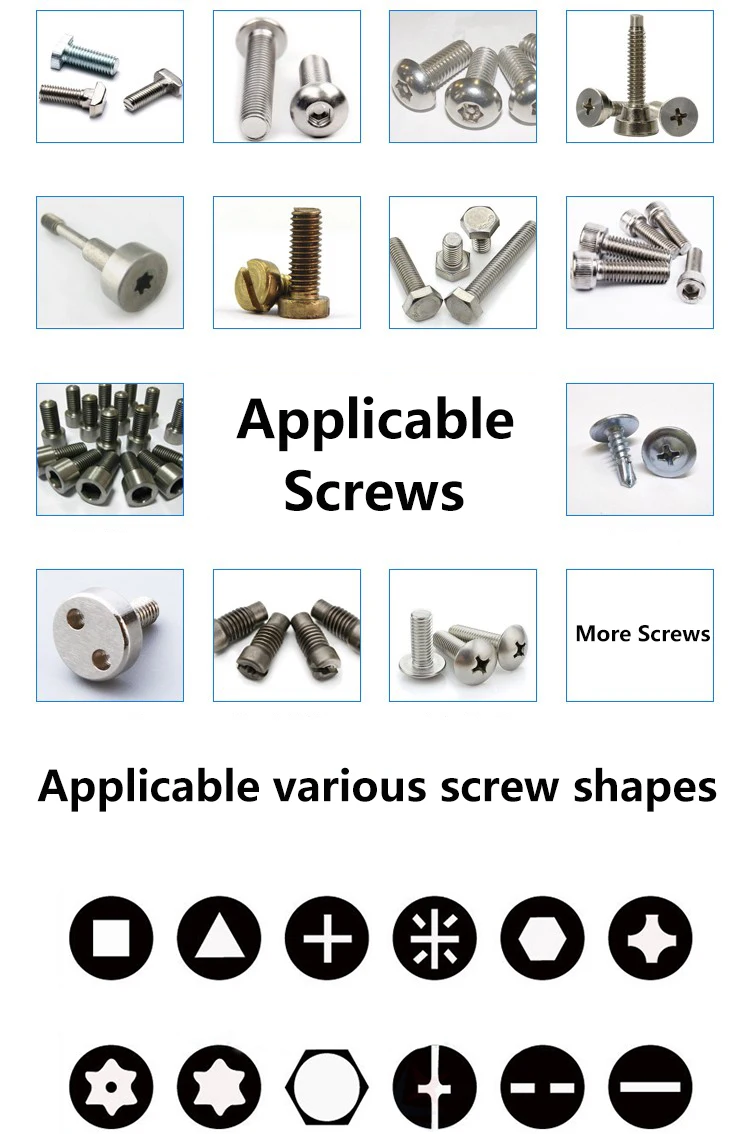

Universal screws
M1.2-M3.0
Work efficiency
1.5s/pcs
Percent of pass
≥99.5%
Stroke
X
500mm
X
300mm
To order
Y1/Y2
300mm
Y
300mm
Z
100mm
Z
100mm
Weight
70kg
65kg
To order
Size
530*600*800mm
To order
Work environment
Temperature: 5-40℃ Humidity: 20-90%

Product parameters table

Auto Robot Screwdriver System Air-Blowing Type Locking Tightening Machine
Auto Robot Screwdriver System Air-Blowing Type Locking Tightening Machine

Packaging and Transportation
Auto Robot Screwdriver System Air-Blowing Type Locking Tightening Machine

Auto Robot Screwdriver System Air-Blowing Type Locking Tightening Machine
