Precision Positioning Turning Table 600KG Servo Weld Positioner for Robot Welding Station
Product introduction

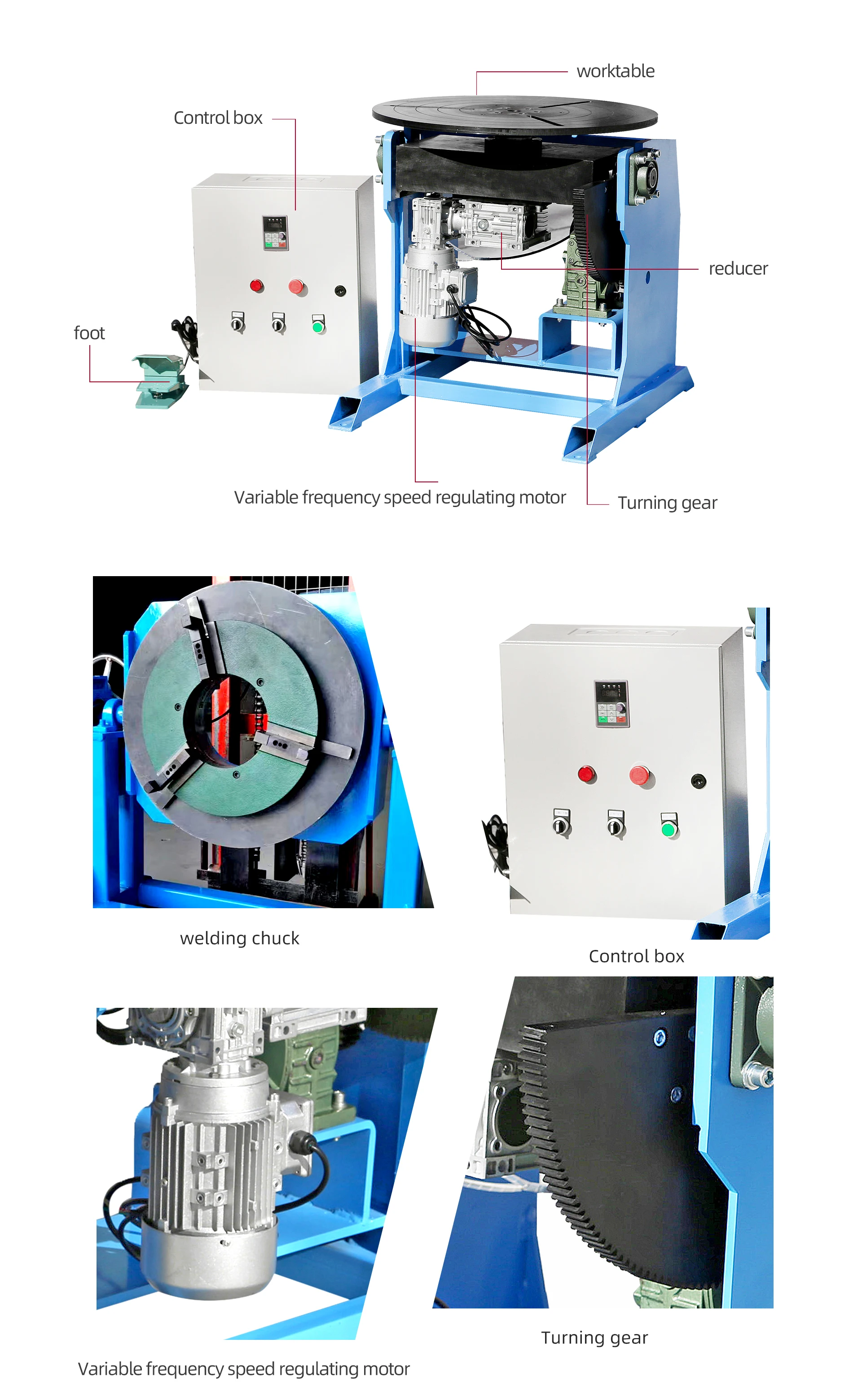

The design ofHD-600 welding positioner
is to make the workpiece at a suitableprocessing angle by using the tilt androtation of the worktable to meet thewelding requirements of valves andflanges to meet the manufacturing requirements.
Good product with appropriate price
For ring welding, cutting, polishing andworkpiece assembly operations;The welding chuck and the adjusting torchmechanism can be configured to fix theposition of the welding torch and adjust therelative position of the workpiece and thewelding torch;Adopt frequency conversion speed regulationsystem with stable performance;
The rotation structure is driven by the AC
motor or stepper motor, while precise speed regulation can be achieved.
The tilt structure of worm and gear withthe function of self-lock, and the worktable
can be tilted between 0-100°
Special design of anti-electromagneticwhich can reduces the high frequencyinterference of TIG welding, and improvethewelding quality effectively.Configure the self-controller can controlthe working condition and working timewhich can achieve the linkage of thepositioner and welder.
Autonomous positioning and navigation robot:
Autonomous positioning navigation technology is a general term for real-time positioning, autonomous map building, motion planning and control technology. It can help robots move autonomously to complete predetermined tasks in an unstructured environment without the need for human intervention. Simply put, it means solving the three major problems of robots: "Where am I?" "Where am I going?" and "How should I get there. Due to its importance, autonomous positioning and navigation technology has always been a research and development focus in the industry. In addition to the robotics industry, it is also one of the key technologies in the autonomous vehicle industry.
About the company
Our guide rail has cooperated with many international well-known robot brands, such as ABB KUKA FANUC Yaskawa UR. The companies involved mainly include palletizing, loading and unloading. The load of the guide rail ranges from 500kg to 5000kg. The length of the guide rail is customized according to the needs of customers. We have made a case that an ABB IRB6700 robot corresponds to 20 CNC machines, and a 50m long guide rail completes the reciprocating motion, loading and unloading of the robot. The number of robots is greatly reduced and the integration cost is saved.
Our company also offers industrial robots at very favorable prices to place orders together at lower prices.
Welcome to Shanghai, China, to investigate our robots and rails!
Company Product Supply
ABB robot
KUKA robot
Yaskawa robot
Fanuc robot
UR robot
Cobot
Guide rail
Cobot made in China
Product specifications
Product parameters table
Packaging and Transportation
Product Tags:
|
|
600KG 500kg Robot Positioner welding Servo Precision Positioning Turning Table Images
|
